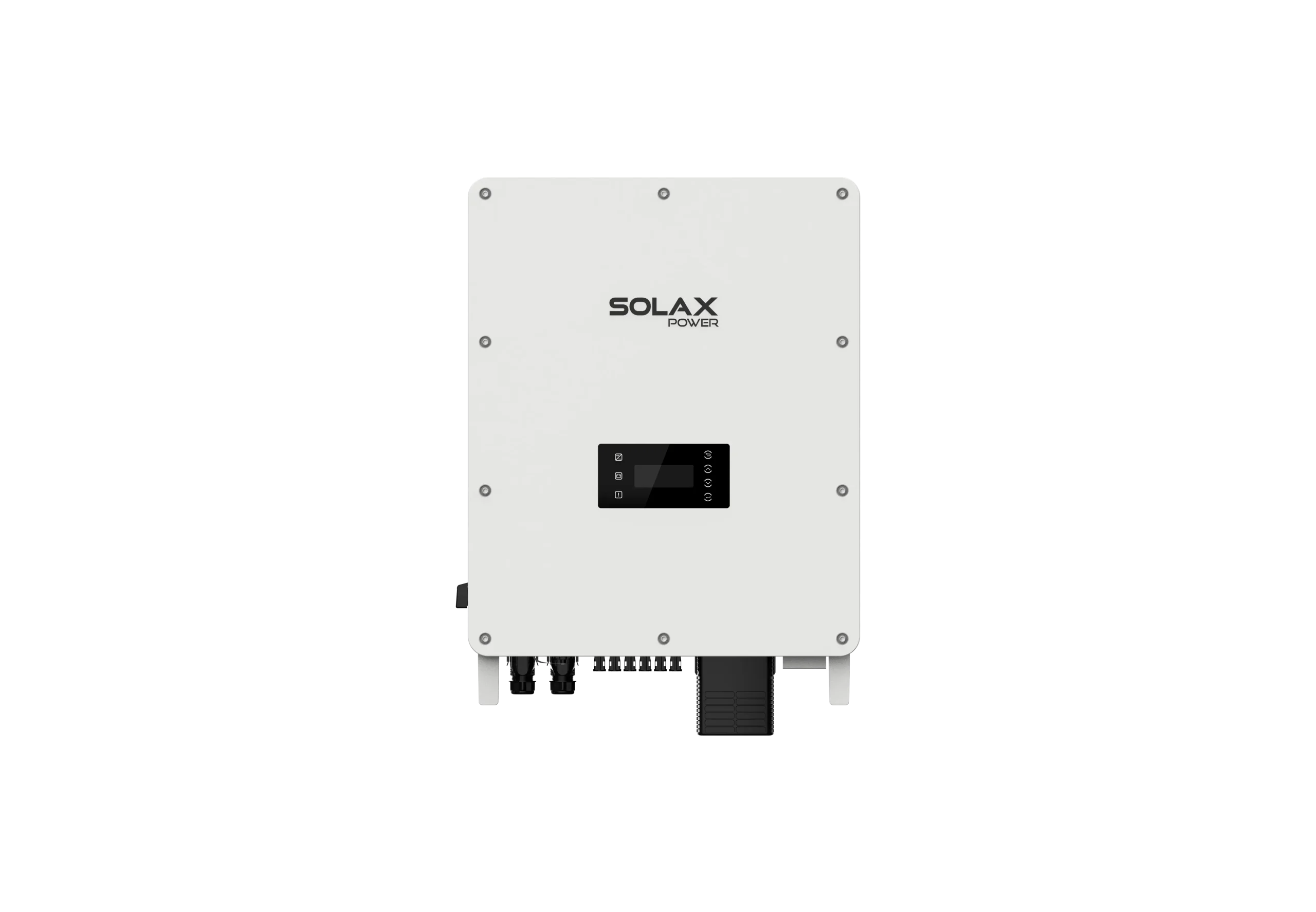

X3-AELIO

Thương hiệu : SolaX Power
Loại : Inverter điện mặt trời

Tình trạng : Còn hàng
Mã sản phẩm : Đang cập nhật

Liên hệ

GIAO HÀNG

Giao hàng toàn quốc, nhanh chóng tiện lợi.

CAM KẾT

Hàng chính hãng của thương hiệu nổi tiếng thế giới.

HỖ TRỢ KỸ THUẬT

Hỗ trợ lắp đặt và kỹ thuật từ xa mọi lúc, mọi nơi.

BẢO HÀNH

Bảo hành chính hãng, dài hạn từ nhà sản xuất.

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao tận tay khách hàng
Mở hộp kiểm tra nhận hàng
Hỗ trợ 24/7
Đổi trả trong 7 ngày

Để được hỗ trợ. Hãy gọi:

0983 414 714

Mô tả

Safe

IP66 protection level
AC&DC SPD type II, always guarding the inverter
AFCI optional
Smart IV Curve scan for early panel diagnosis

Robust

Robust back-up ability, switch over time ＜10ms, up to 150% EPS output for 10s
Support off-grid operation

Economic

Maximum 200% PV input
Maximum 40A input current per MPpT, support high power solar panel

Intelligent

AI ready, forecasting solar generation and load consumption, smart energy management strategy*
VPP ready, SolaX cloud supports resource aggregator (2030.5, OpenADR )
Support smart scene function, intelligent loads management(e.g., Heat pump, EV charger)*
Micro-grid ready, supporting a variety of scenarios, both on-grid and off-grid, balancing power between PCS and Hybrid in real time
Support 7x24h scheduling mode
Support Wireless meter solution
Dual independent battery ports are ready to expand more capacity

WhyX3-AELIO

It offers 24/7 smart energy management, utilizing AI to forecast solar generation and load consumption, with VPP readiness and intelligent scene functions for optimal energy use. It delivers high efficiency and reliability with a switch-over time of less than 10ms and up to 150% EPS output for 10 seconds, supporting off-grid operations. Additionally, it is highly cost-effective, supporting up to 200% PV input and 40A input current per MPPT, making it ideal for high-power solar panels and ensuring maximum energy savings and efficiency.

X3-AELI0-49.9K

X3-AELI0-50K

X3-AELI0-60K

X3-AELIO-61K

	Category	X3-AELIO-49.9K
DC Side	Max. PV input power [kW]	100
	Max. PV input voltage [V]	1000
	Start-up voltage [V]	200
	Nominal input voltage [V]	650
	MPPT voltage range [V]	160-950
	No. of MPP trackers / Strings per MPP tracker	5 (2 per MPPT)
	Max. input current per MPPT [A]	40
	Max. input short circuit current per MPPT [A]	50
AC Side	Rated AC output power [kW]	49.9
	Rated AC output current [A]	72.3
	Max. AC output apparent power [kVA]	49.9
	Max. AC output current [A]	83.2
	Nominal AC voltage [V]	3P4W, 400/230, 380/220
	Rated AC grid frequency [Hz]	50 / 60
	Adjustable Power Factor range	1 (0.8 Leading ~ 0.8 Lagging)
	THDi (Rated power) [%]	< 3
Battery Side	Battery type	Lithium – ion
	Battery voltage range [V]	180 – 820
	Max. charge / discharge current [A]	160 (80×2)
EPS Output (with battery)	Peak apparent AC power [kVA]	49.9
	Nominal voltage [V]; Frequency [Hz]	3P4W, 400/230V, 380/220V; 50/60HZ
	Max. output continuous current [A]	72
	Switch time [ms]	< 10
General	Max. efficiency [%]	98
	European weighted efficiency [%]	97.2
	Ingress protection	IP66
	Operating ambient temperature range [°C]	– 35 ~ 60
	Max. operating altitude [m]	< 3000
	Relative humidity [%]	0 ~ 100
	Typical noise emission [dB]	< 70
	Dimensions (W×H×D) [mm]	820 × 670 × 257
	Net weight [kg]	< 100
	Cooling concept	Smart air cooling
	Communication interfaces	RS485, CAN(BMS), CAN, USB, DI, DO, DRM
	Display	LCD (optional)
Power Consumption	Standby consumption (night) [W]	< 10
Protection	Over/under voltage protection	Yes
	DC isolation protection	Yes
	DC reverse-polarity protection	Yes
	Grid monitoring	Yes
	DC injection monitoring	Yes
	Back feed current monitoring	Yes
	Residual current detection	Yes
	Anti-islanding protection	Yes
	Over temperature protection	Yes
	SPD (DC/AC)	Type II/Type II
	Arc-fault circuit interrupter (AFCI)	Optional
Standard	Safety	EN/IEC 62109-1/-2
	EMC	EN 61000-6-1/2/3/ 4, EN 61000-3-11/12, EN 55011, IEC 62920
	Cetification	VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
